Apex EB832 12v Power Supply Repair/Upgrade Kit

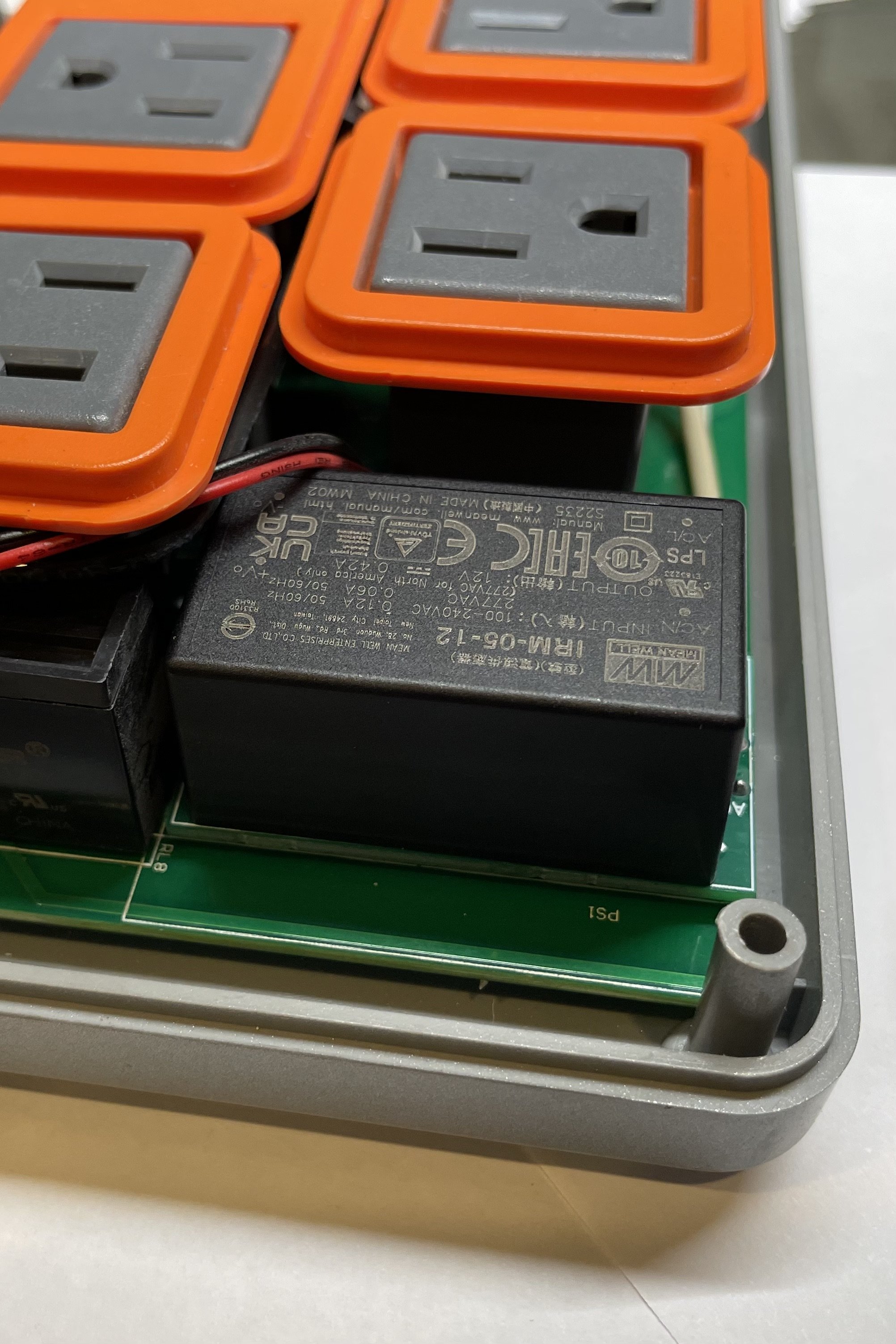

This is a DIY Repair/Upgrade Kit for the Neptune Apex EB832 that has the older exposed 12v PSU.
Click here for instructions on identifying EB832 12v failure symptoms and how to install this Meanwell PSU
Click here for a how-to video on using this kit to repair an EB832.
If your EB832 120v outlets stop working but the indicator LEDs still function when outlets are toggled in Fusion, a defective 12v PSU is likely the culprit. This repair is applicable to the older model EB832. If your EB832 has an Intertek Certification sticker on the back, it is a new model and this repair is not applicable.
The following options are available:

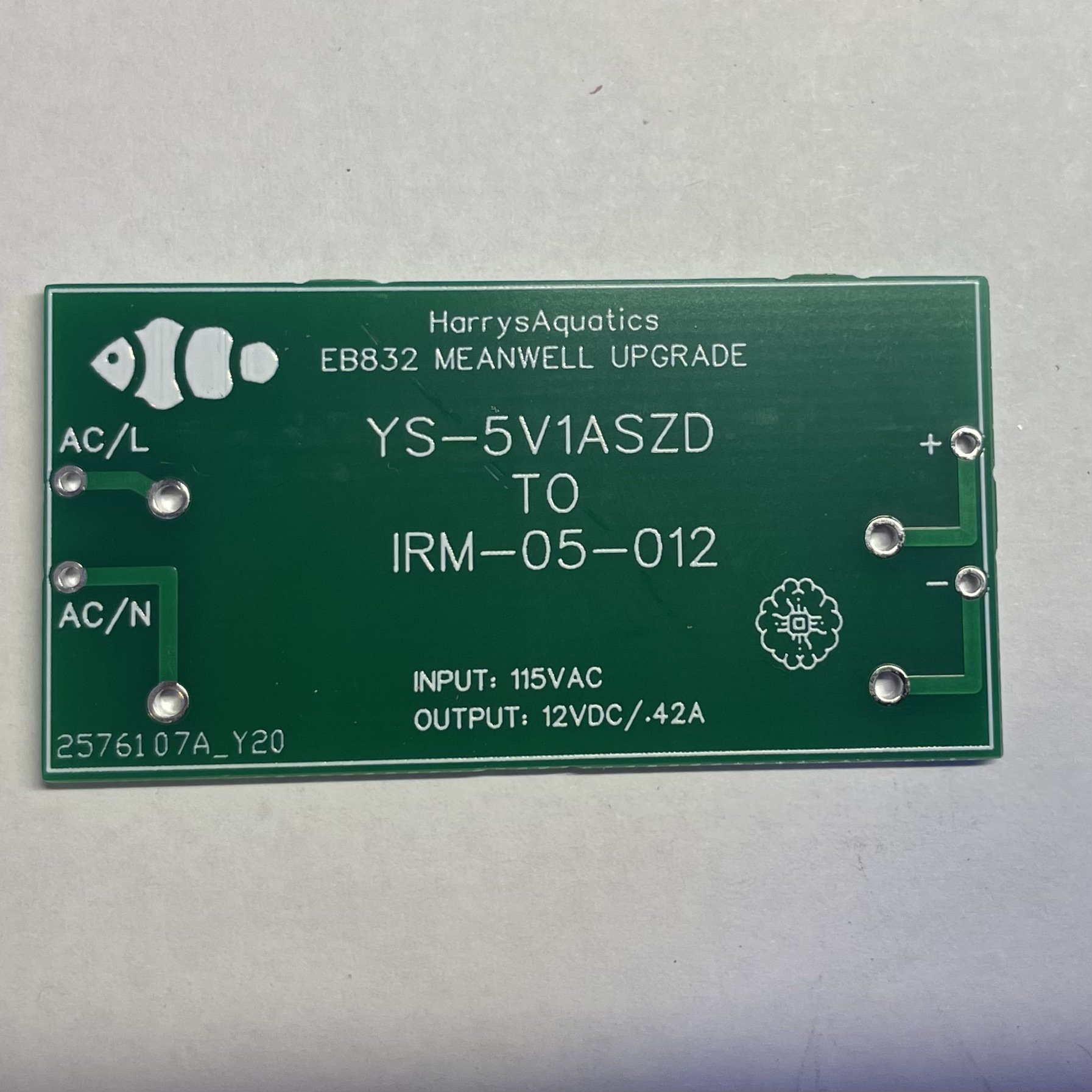

PCB Only (Source your own MeanWell IRM-10-12 & Headers)

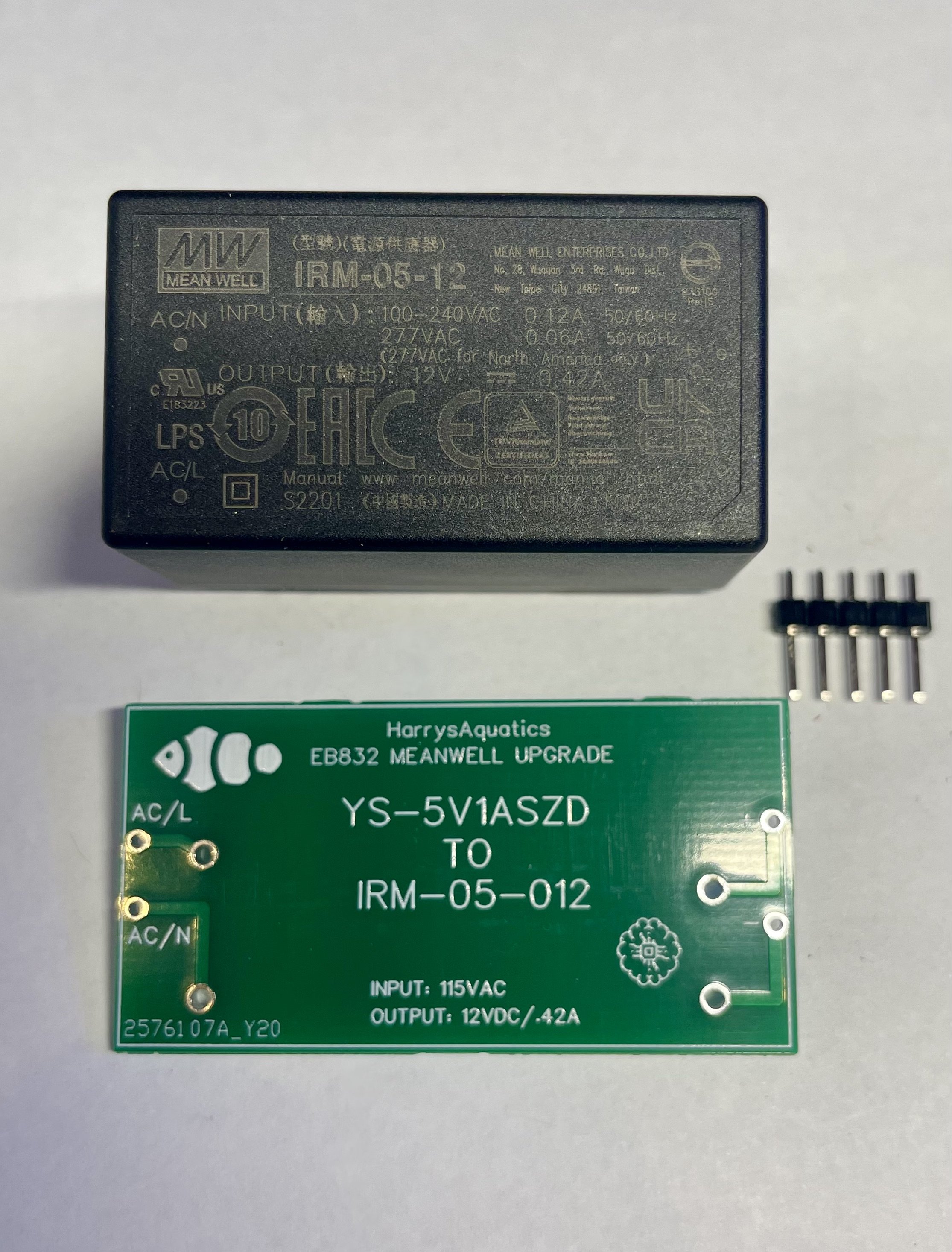

Complete DIY Kit (Includes PCB, Meanwell IRM-10-12 & Headers)

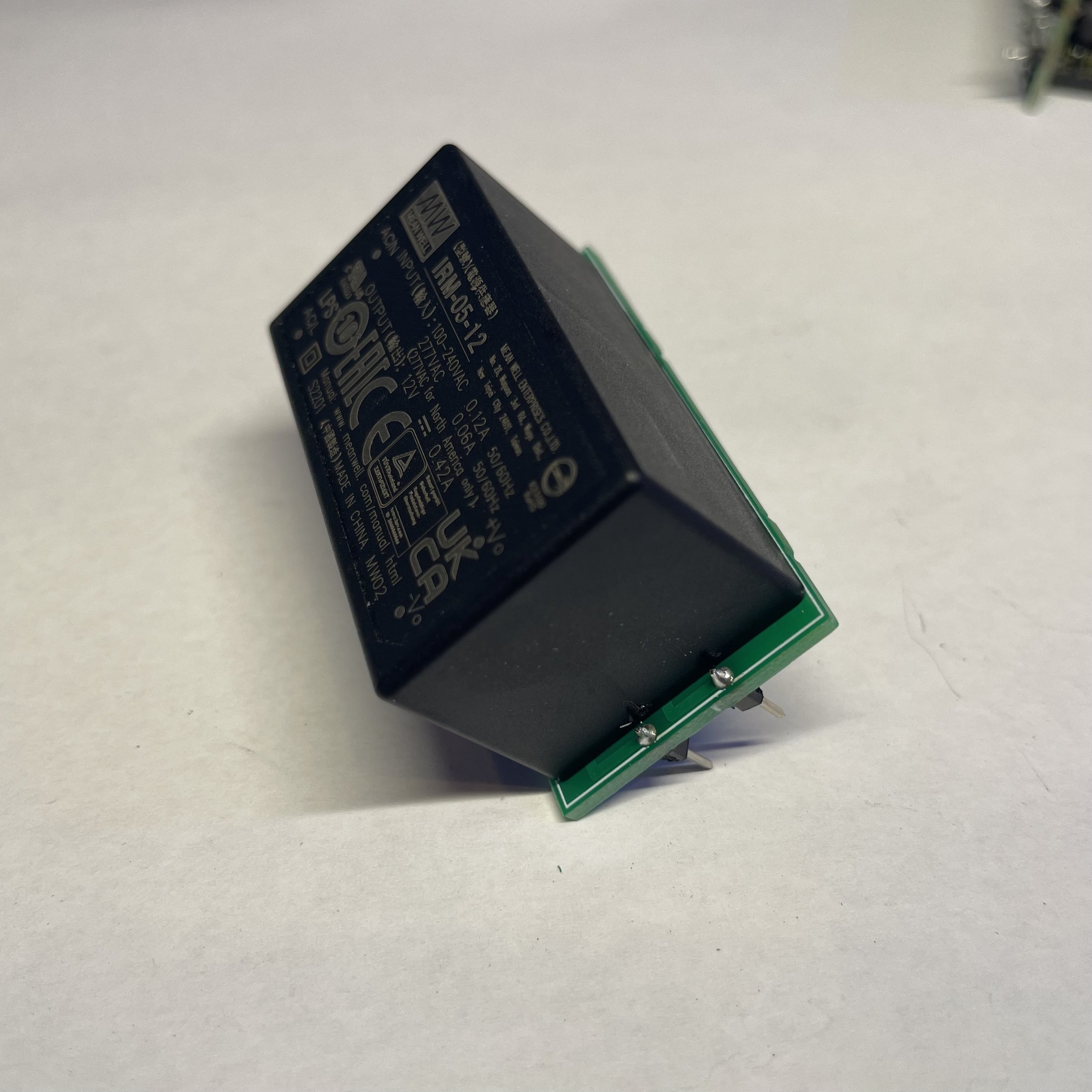

Preassembled Kit (Includes Meanwell IRM-10-12 soldered onto PCB with pre-soldered headers). Ready to install.
This is a DIY Repair/Upgrade Kit for the Neptune Apex EB832 that has the older exposed 12v PSU.
Click here for instructions on identifying EB832 12v failure symptoms and how to install this Meanwell PSU
Click here for a how-to video on using this kit to repair an EB832.
If your EB832 120v outlets stop working but the indicator LEDs still function when outlets are toggled in Fusion, a defective 12v PSU is likely the culprit. This repair is applicable to the older model EB832. If your EB832 has an Intertek Certification sticker on the back, it is a new model and this repair is not applicable.
The following options are available:
PCB Only (Source your own MeanWell IRM-10-12 & Headers)
Complete DIY Kit (Includes PCB, Meanwell IRM-10-12 & Headers)
Preassembled Kit (Includes Meanwell IRM-10-12 soldered onto PCB with pre-soldered headers). Ready to install.
This is a DIY Repair/Upgrade Kit for the Neptune Apex EB832 that has the older exposed 12v PSU.
Click here for instructions on identifying EB832 12v failure symptoms and how to install this Meanwell PSU
Click here for a how-to video on using this kit to repair an EB832.
If your EB832 120v outlets stop working but the indicator LEDs still function when outlets are toggled in Fusion, a defective 12v PSU is likely the culprit. This repair is applicable to the older model EB832. If your EB832 has an Intertek Certification sticker on the back, it is a new model and this repair is not applicable.
The following options are available:
PCB Only (Source your own MeanWell IRM-10-12 & Headers)
Complete DIY Kit (Includes PCB, Meanwell IRM-10-12 & Headers)
Preassembled Kit (Includes Meanwell IRM-10-12 soldered onto PCB with pre-soldered headers). Ready to install.
PLEASE NOTE:
This repair should only be attempted by someone experienced with soldering and electronics, such as a licensed electrician.
I am not liable for any damages to your person or property based on this repair. This component is designed as a potential DIY solution to repairing a damaged item, and as such, the buyer accepts all responsibility for risks or damages to your person or property.
This is a DIY kit, and as such, it includes no warranty, guarantees, or bears any responsibility for your installation. Take precautions when working with electrical components including (but not limited to) ensuring they are unplugged when opened.
I have no responsibility for the user-installed modification of their EB832s.
By purchasing this item, the buyer agrees they bear full responsibility toward any outcomes that may occur based on their DIY repair.
Listing history:
2/5/23: v1.0 PCBs w. IRM-05-12
Notes: Initial Release
2/25/23: Updated to v1.1 PCBs
Notes: Wider traces, trace angle optimization, artwork. No price change.
3/25/23: Updated included PSU to IRM-10-12.
Notes: Neptune Systems is using IRM-05-12s (5w/.42a capacity) running close to max capacity if multiple modules and head unit are powered by a single EB832. Now shipping kits with Meanwell IRM-10-12 (10w/.85a capacity) so the power supply operates in the middle of its rated range and thus produces less heat/ longer lifespan.
3/22/24: Updated to v1.2 PCBs for 2024.
Notes: Aesthetic changes. Changed color to BLACK. Updated text & artwork.
